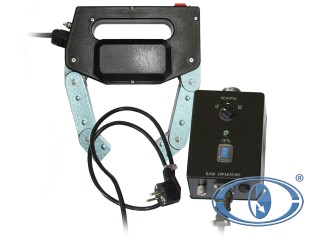

UMPK-2000 magnetic particle flaw detector

This equipment ensures the magnetic particle testing in accordance with the requirements of the following regulatory documents: GOST 21105, RD 32.159-2000, PR NK V.3 - “Rules for non-destructive testing of cargo car truck parts during repair. Special requirements”. The use of the equipment set based on UNm-1 magnetizer allows to detect surface flaws such as cracks of any orientation, by the wet fluorescent-magnetic testing method (using the special UV or blue-light lamps) with “B” reference sensitivity level according to GOST 21105.

Main specifications

UMPK-2000 magnetizer:

• Distance between poles:
• minimum distance ………………………………………………………0 mm;
• maximum distance ……………………………………………………245 mm.
• Maximum operating current, not more than ………… ……………………….…..6 А;
• Operating voltage ……………………………………………………… 220 V ± 10 %;
• Overall dimensions……………………………………... 200 mm x 170 mm x 55 mm;
• Complete unit weight, not more than ……………………………………………. 4 kg;
• Protection class …………………………………….. IР 34 according to GOST 14254;
• Operating temperature range ………………………………………. from -10 to 40°С;
• Operability is maintained at humidity ………............................................... up to 98%
• and pressure …………………………………………………. from 84.0 to 106.7 kPa;
• Continuous operation time is not less than 150 cycles of magnetizing / demagnetizing.
